Walbro 450lph E85 Pump

$139.00

Product details

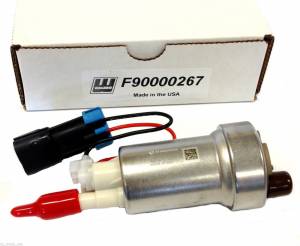

F90000267 WALBRO E85 FUEL PUMP - HIGH PERFORMANCE 450LPH

 Walbro F90000267 Fuel Pump E85 High PressureWalbro F90000267 E85 Fuel Pump Walbro F90000267 Performance Chart High Pressure 12V / 13.5V 450LPH Walbro F90000267 Fuel Pump Flow LPH VS PSI Pressure Graph
  • Outperforms all current market in-tank fuel pumps
  • Designed for engines with more than 750 HP
  • Award-winning OE technology
  • High-pressure, high-flow performance
  • OEM technology designed and developed for E85
Dual channel turbine design for maximum efficiency under high pressure and high temperature applications Made in USA by TI Automotive (parent company of Walbro)  All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications 100% Authentic & Genuine Walbro/ TI Automotive E85 Racing In tank 450 LPH high pressure fuel pump with installation kit Walbro F90000267 internal E85 HP RACING fuel pump Installation kit  ( fuel strainer, fuel hose, harness pigtail, 2 clamps, 2 wire connectors The F90000267 requires modifications to system wiring, fuel lines and the fuel module, and should be professionally installed. The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp. Designed for E85 or Gasoline applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20 percent higher than conventional pumps. SPECIFICATIONS 465 lph @ 40 psi and 13.5V (14.1 amps) in gasoline Outlet diameter: 10mm (3/8") Diameter (upper body) 39mm Diameter (lower body) 50mm Walbro F90000267 Fuel Pump Inlet OutletWalbro F90000267 Fuel Pump with PigTail Electric Connectors
